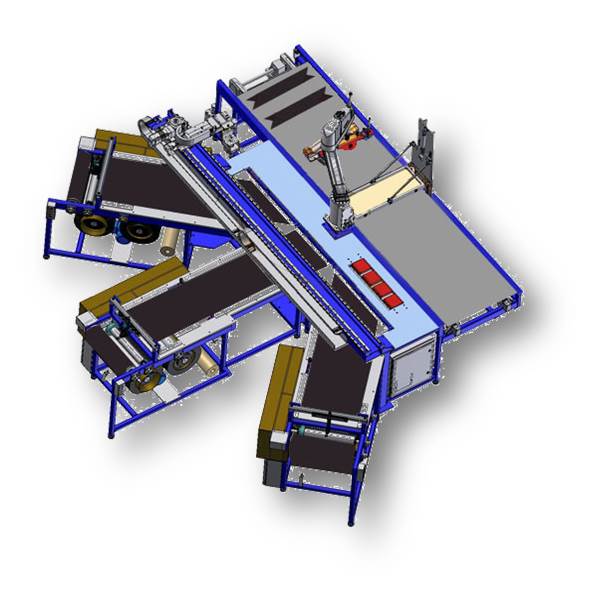

Skip to contentSmall Parts Laminator II
- Three incoming uni-tapes (45°, -45°, 90°)
- Ultrasonic cutter on X-Y-Theta servo stage
- Robot picks places plies/parts thru process
- Individual ply heating
- Stacked laminate formed to non-planar shape
- Formed parts placed on conveyor
Machine Images
