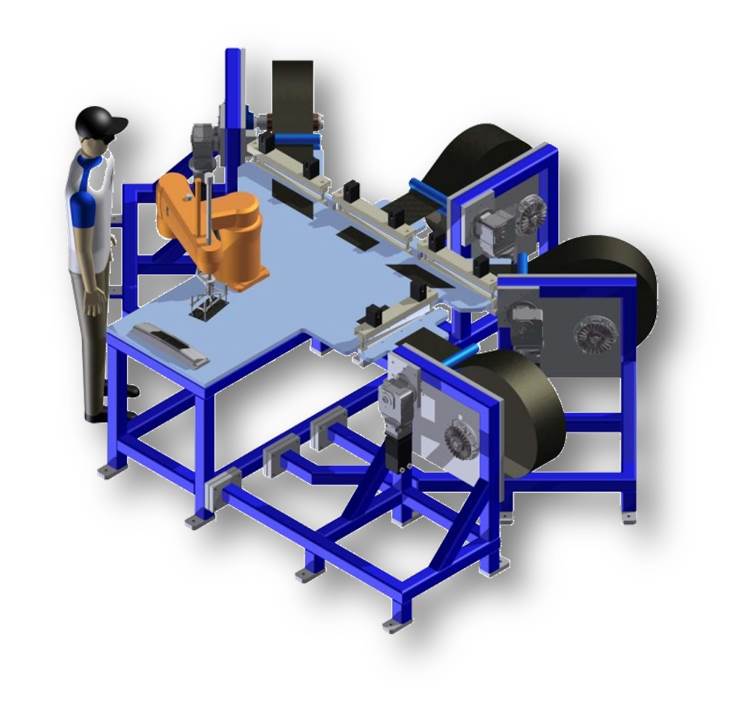

Skip to contentSmall Parts Laminator I
- Four incoming uni-tapes (45°, 0°, -45°, 90°)
- Ultrasonic cutter on X-Y- Theta servo stage
- Robot to pick and move plies/parts thru process
- Individual ply heating
- Stacked laminate formed to non-planar shape
Machine Images
